Sumi Soaker Β· Riser Clamp Β· Fits R-Wide and Mark II

Sumi Soaker Riser Clamp

5.0 out of 5 Β· 6 reviews

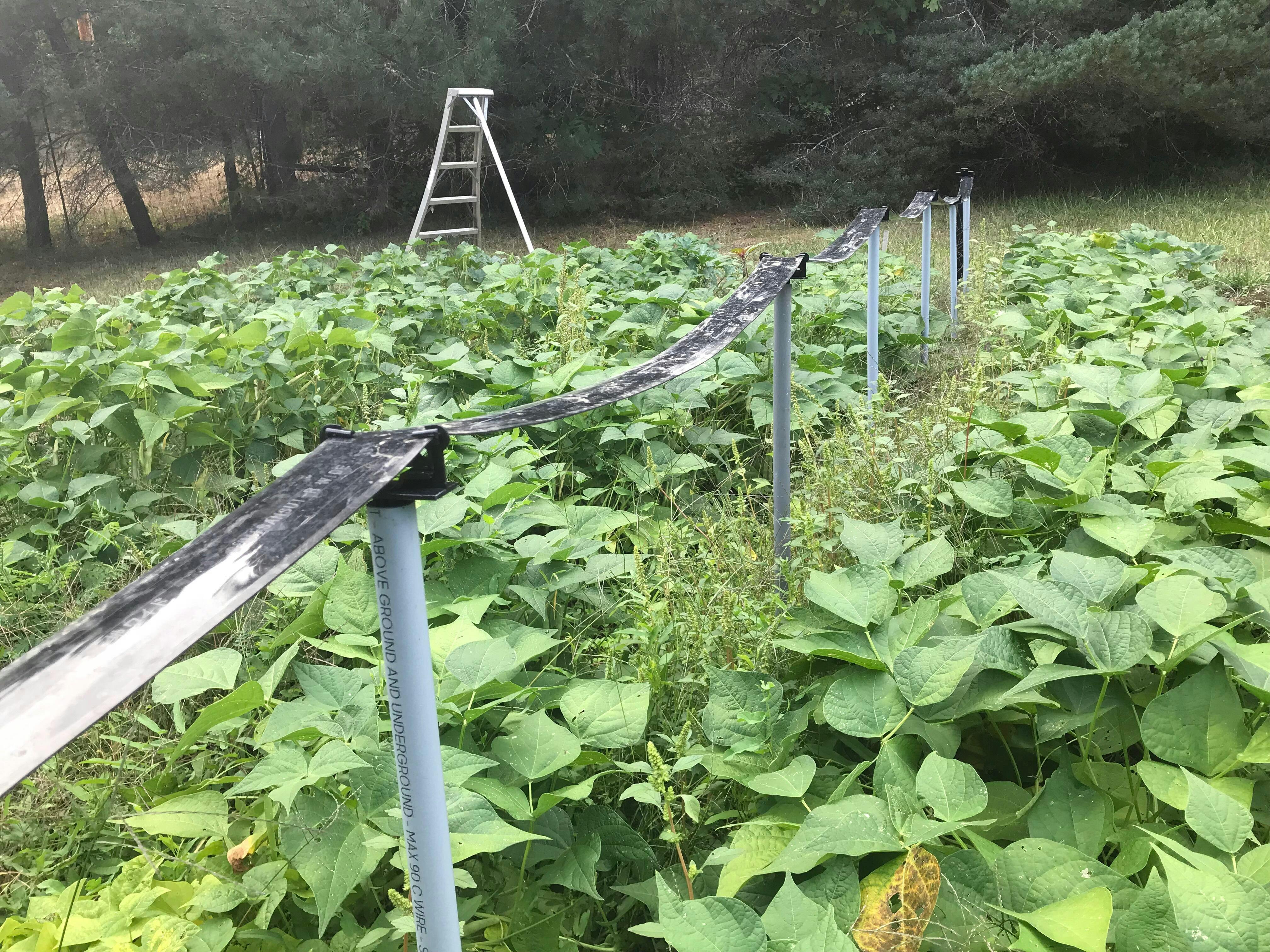

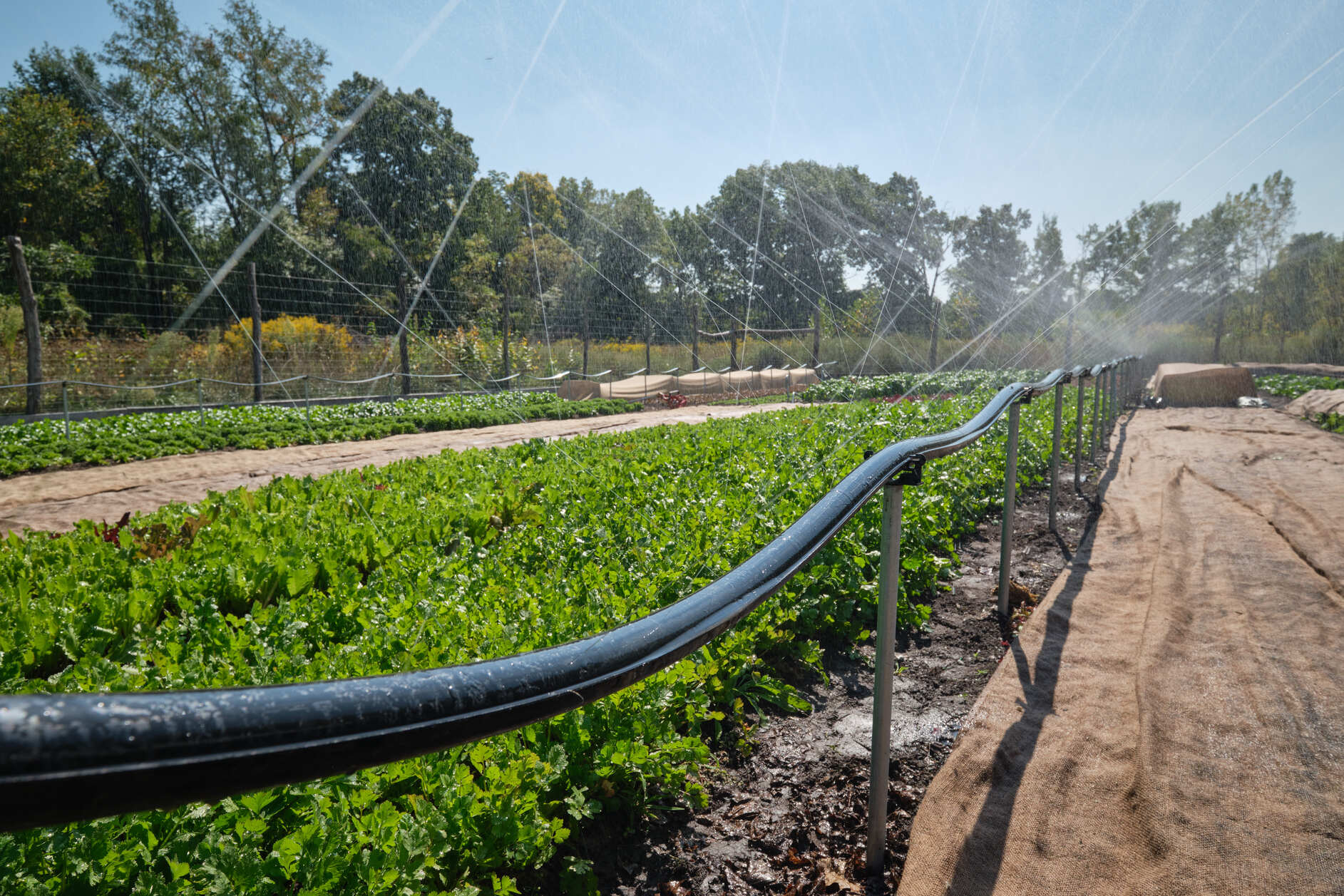

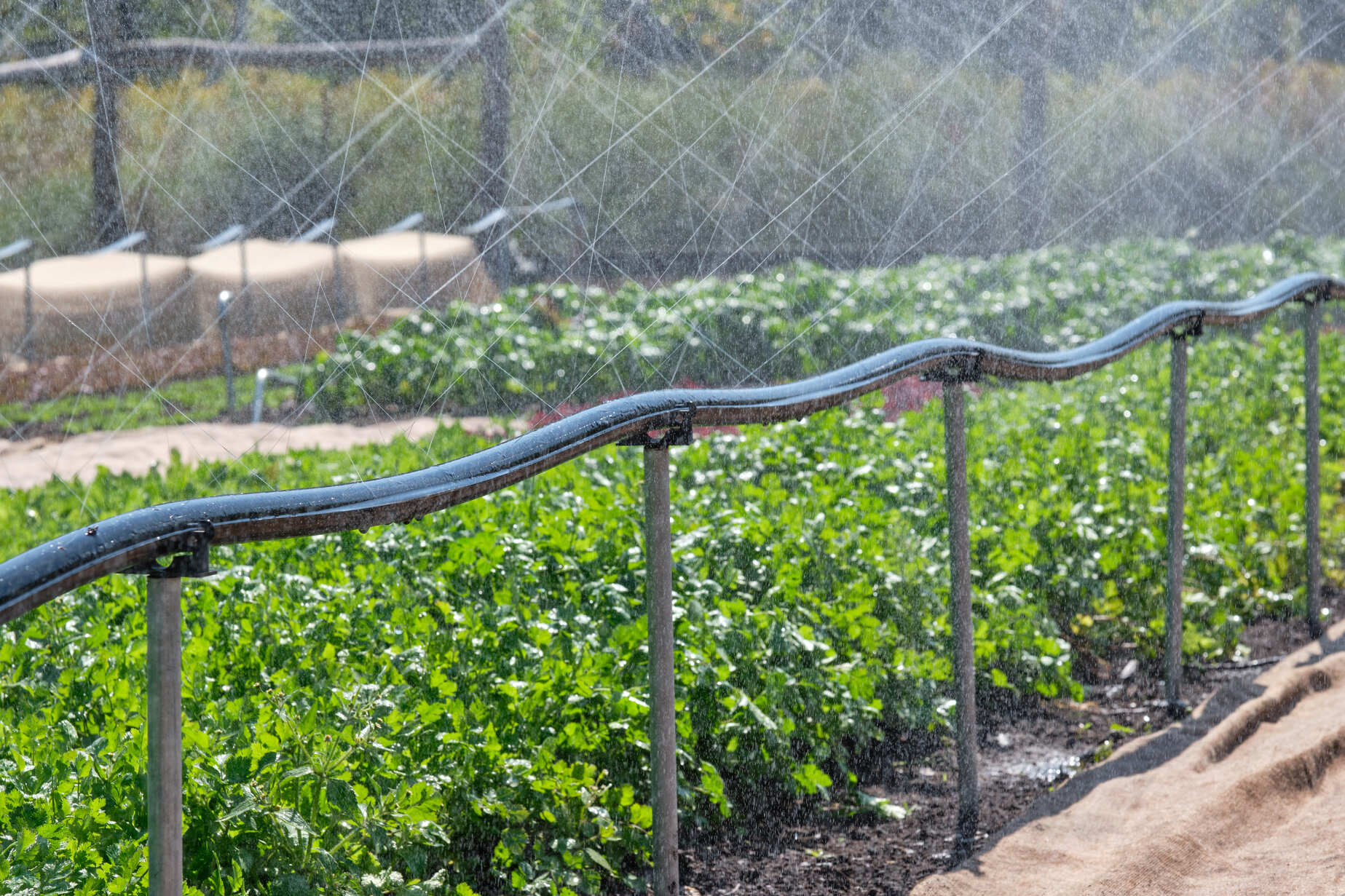

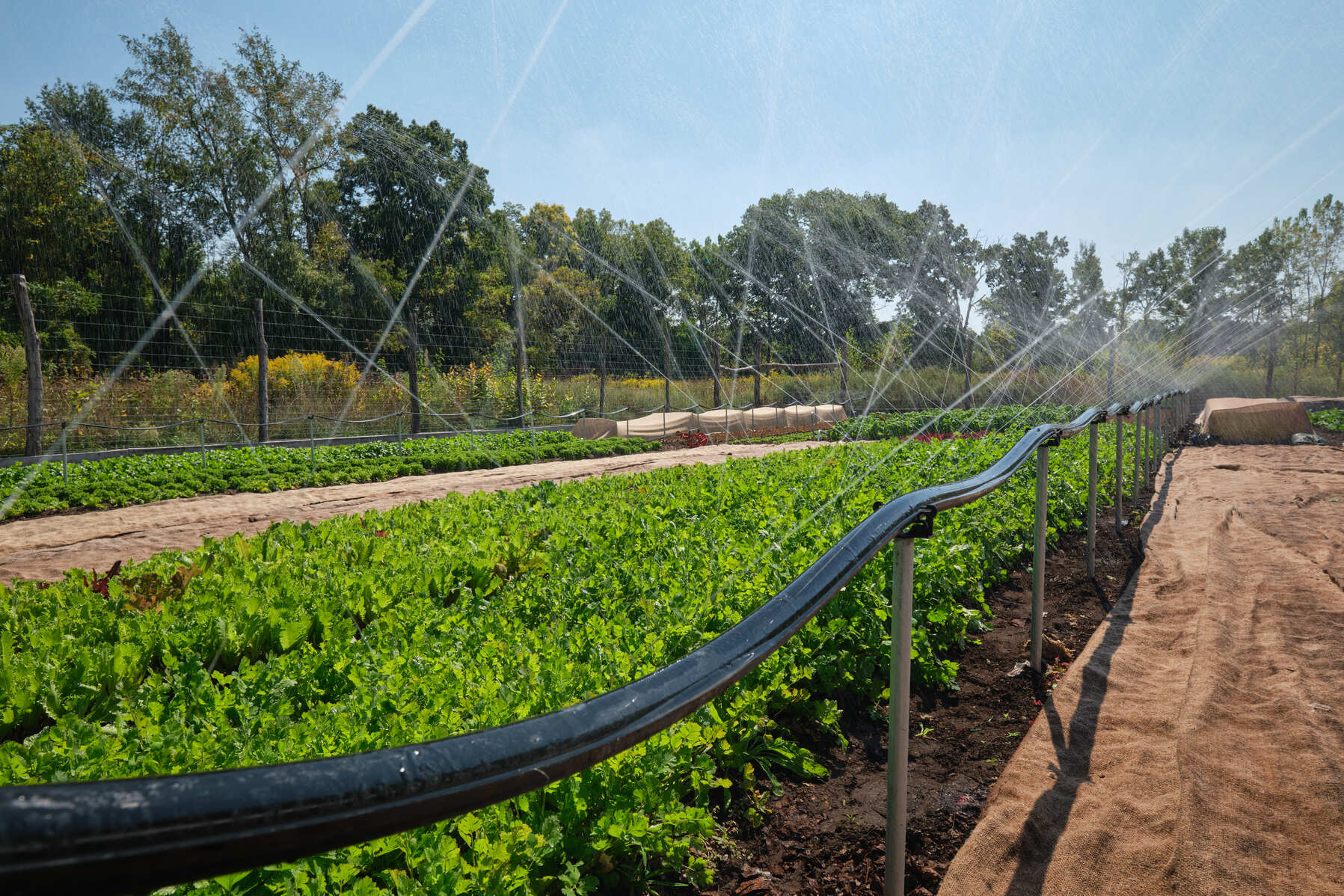

Lift your Sumi Soaker tubing off the ground and above the crop. The clamp plugs into the top of a 3/4 in post and grips the tubing, so the spray clears tall crops, cover crops and low tunnels, and the tube can't roll and throw the spray off line.

$5.50
Quantity: Single clamp

  • Spray over the crop, not into it. With the tubing raised, tall crops and cover crops stop blocking the spray and leaving dry strips.
  • Holds the tube square. The clamp grips the tubing so it can't twist or roll on the ground, which keeps the spray pattern even from one end of the bed to the other.
  • Fits R-Wide and Mark II. One clamp for both Sumi Soaker tubes.
  • Use our stakes or your own posts. Plug it into a Sumi Soaker Riser Stake, or into 3/4 in EMT conduit or Schedule 40 PVC cut to length.
What's in the box

Sumi Soaker Riser Clamps in the quantity you choose. Posts sold separately.

Free shipping on orders over $25 in the Lower 48 Β· Most orders ship within 24 hours

  • 3.5 ft Spacing between risers
  • 30 Risers for a 100 ft bed
  • 2 Tubes it fits: R-Wide and Mark II
  • 3/4 in Post it plugs into
Install

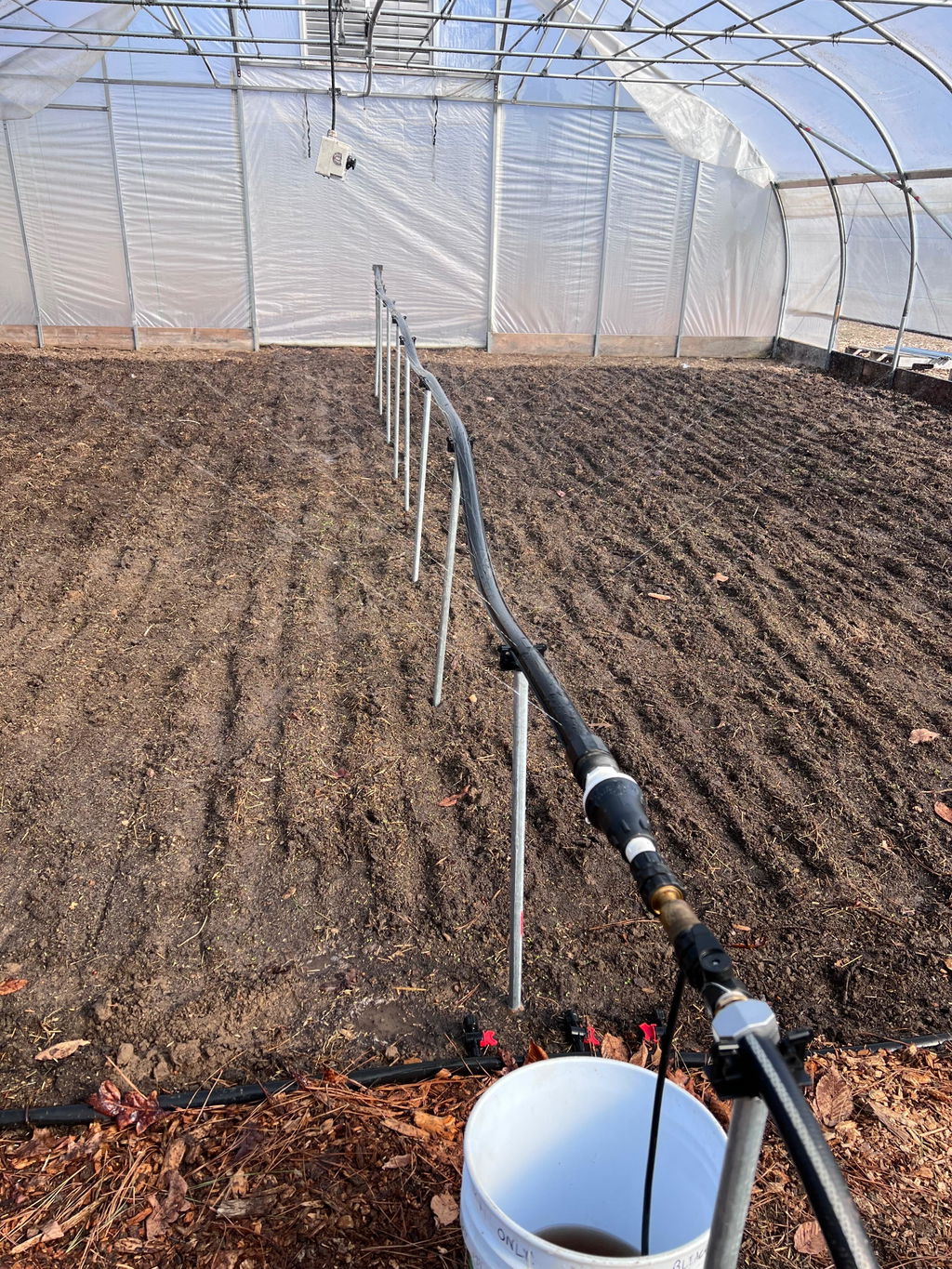

Raise a bed of tubing in four steps

Set the posts Drive Riser Stakes, or 3/4 in EMT or Schedule 40 PVC cut to about 3 ft, 6 to 12 in into the bed.
Space them out About 3.5 ft apart along the bed, with one at each end.
Add the clamps Push a Riser Clamp into the top of each post.
Run the tubing Lay the Sumi tubing into the clamps and connect it to your water source.

From our reviews

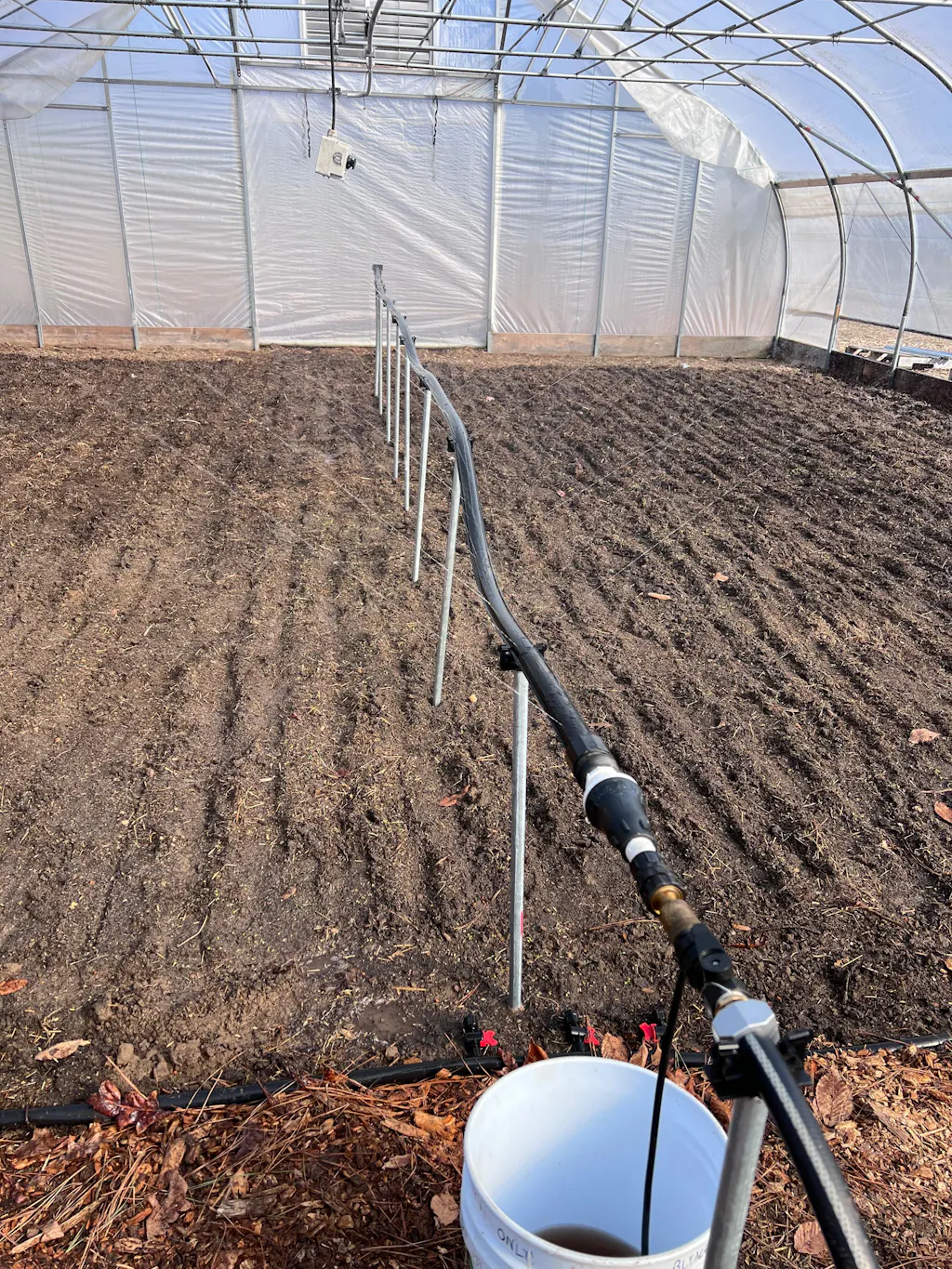

  • “With risers I can now use 1 sumi to water the full width of a 30' high tunnel!”
    Rebecca B.
  • “Before using the risers, I constantly had to worry about crop placement and height - taller plants would block the spray pattern and create dry spots.”
    Michael
  • “The spray clears the foliage beautifully, and I no longer stress about crops impeding the water path.”
    Michael

How many risers do you need?

Space risers about 3.5 ft apart along the bed, with one at each end. Each riser is one clamp on one post.

At about 3.5 ft spacing. Some growers run wider spacing on R-Wide; start at 3.5 ft and adjust.
Bed length Risers needed Packs that cover it
25 ft About 9 10 clamps + 10 stakes
50 ft About 16 20 clamps + 20 stakes
100 ft About 30 30 clamps + 30 stakes

Pairs well with

Specs at a glance

Fits tubing
Sumi Soaker R-Wide and Mark II
Fits posts
Sumi Soaker Riser Stake, 3/4 in EMT conduit or 3/4 in Schedule 40 PVC
Spacing
About 3.5 ft apart along the bed
Options
Single clamp, or kits of 10, 20 or 30

Riser questions

Questions about your setup? Email hello@moderngrower.co or call 877-850-1555.

Do I need risers?

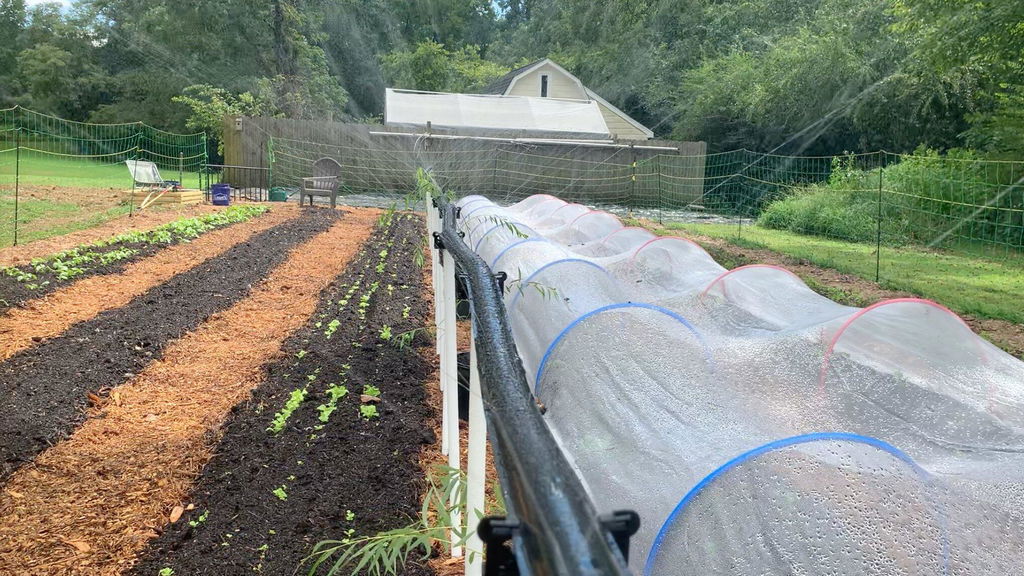

Not for low crops. Risers help when tall crops, cover crops or low tunnels block the spray, and they hold the tubing square so it doesn't roll on the ground and throw the spray off line.

What posts does it fit?

Our Sumi Soaker Riser Stakes, or 3/4 in EMT conduit or 3/4 in Schedule 40 PVC cut to about 3 ft. Growers report Schedule 40 holds the weight of a full tube with no wobble; thinner-wall PVC may not.

How far apart should the risers be?

About 3.5 ft, with one at each end of the bed. That's about 9 risers for a 25 ft bed, 16 for 50 ft and 30 for 100 ft.

Does it work with both tubes?

Yes. The same clamp holds R-Wide and Mark II tubing.

How high does it lift the tubing?

That depends on the post. A 30 in Riser Stake driven 6 to 12 in deep holds the tubing about 18 to 24 in off the ground.

Help with your setup

Tell us your beds and water source and we'll tell you what you need.

Real people answer

Questions go to our team, not a bot. hello@moderngrower.co Β· 877-850-1555

Ships fast

Most orders ship within 24 hours. Free shipping over $25 in the Lower 48.

About the Sumi Soaker Riser Clamp

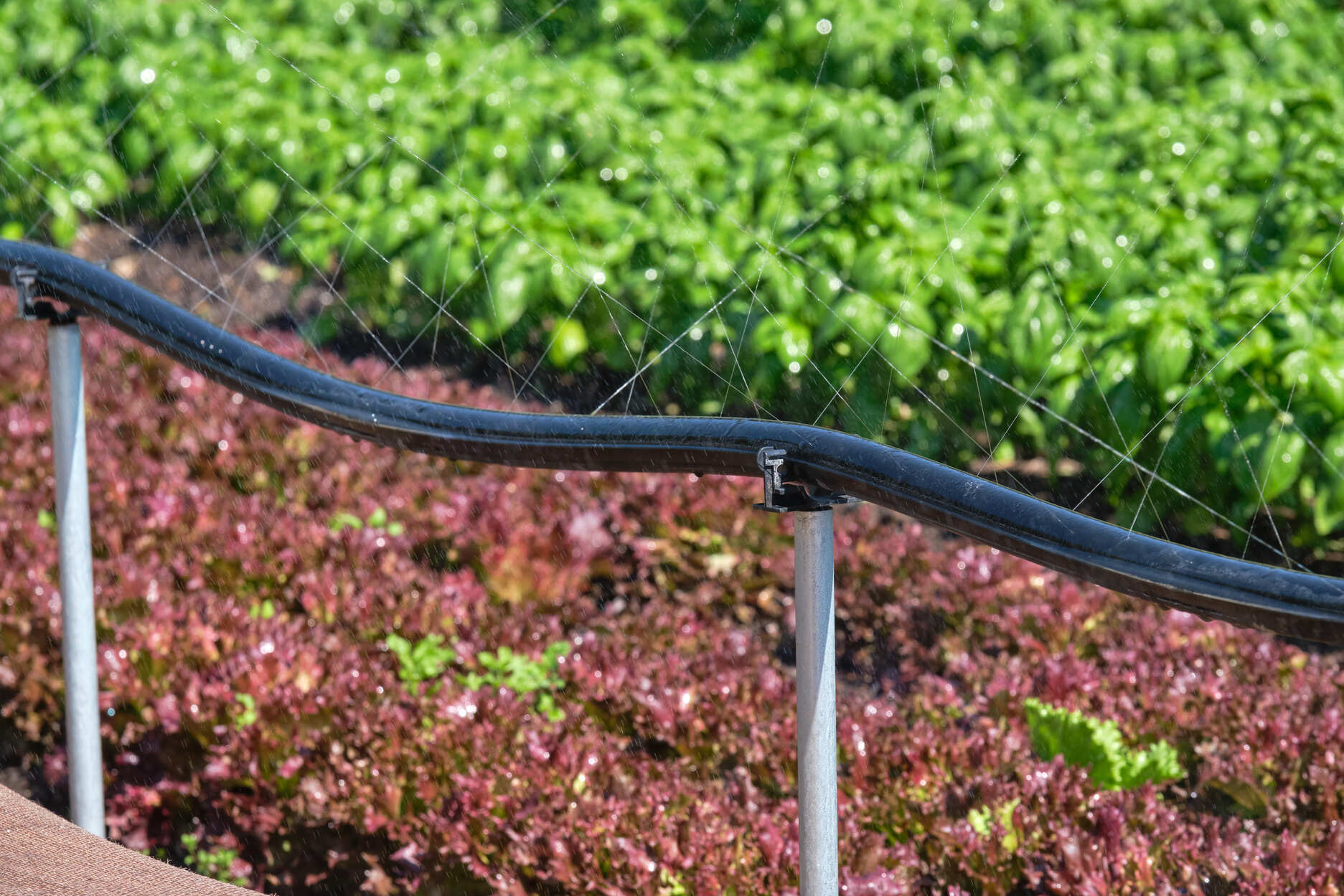

Sumi Soaker tubing normally lies on the bed. The riser clamp lifts it onto posts so the spray clears the crop. It plugs into the top of a 3/4 in post and grips the tubing, holding it square so the spray pattern stays even along the bed.

Posts

Use Sumi Soaker Riser Stakes, which are pre-cut and galvanized to match the clamp, or cut your own from 3/4 in EMT conduit or Schedule 40 PVC.
